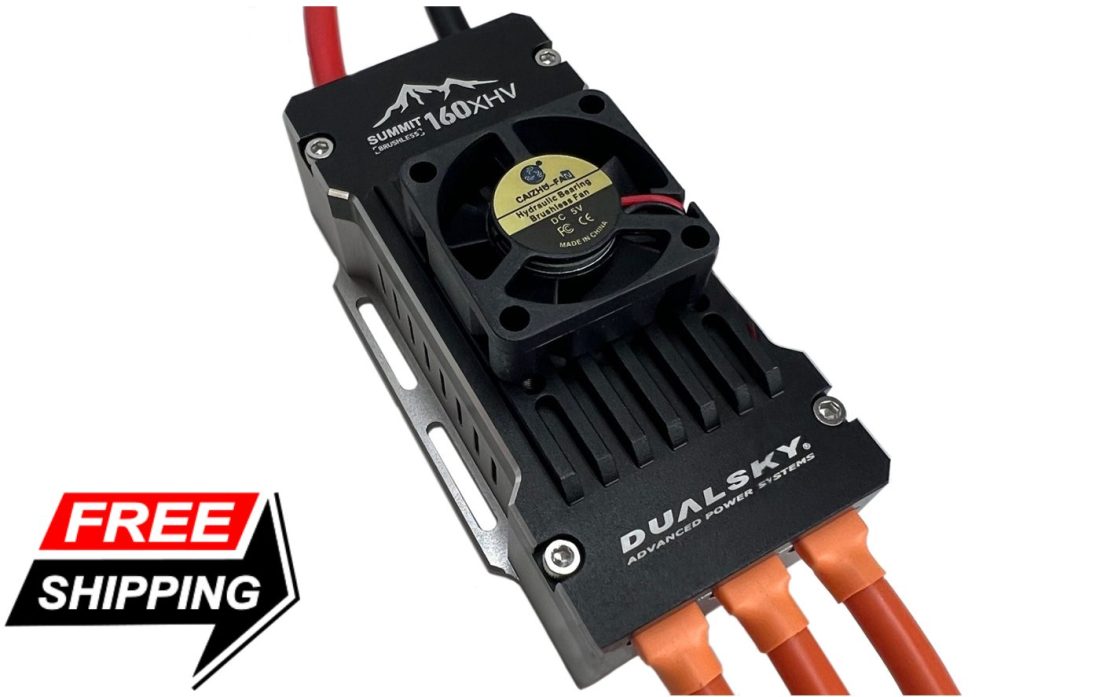

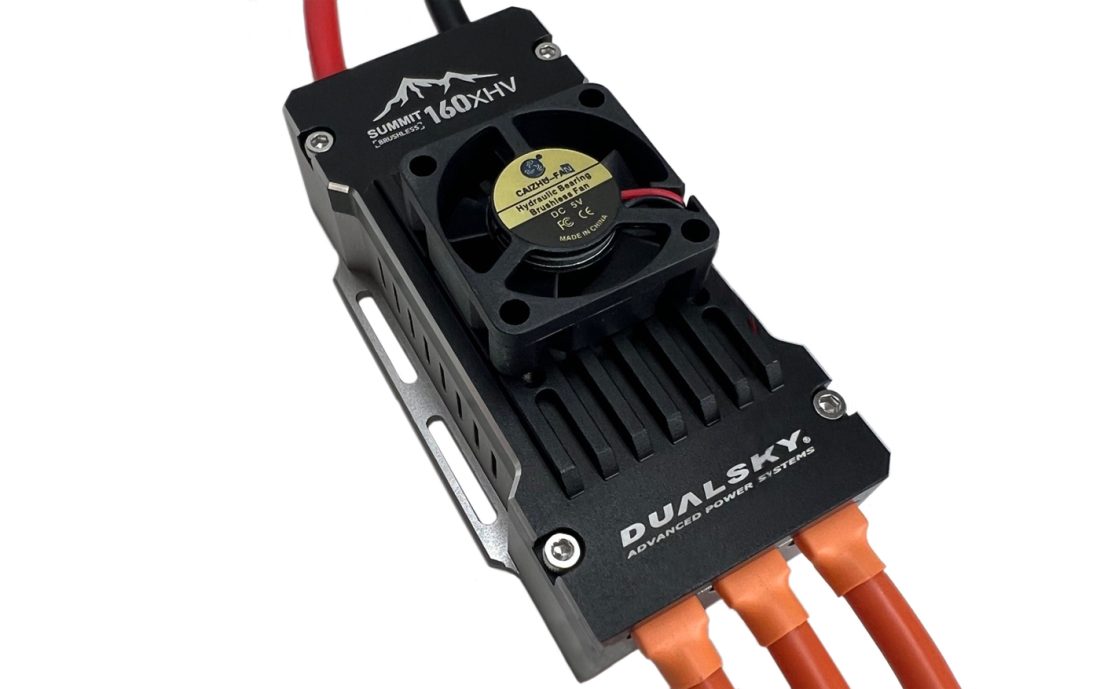

DUALSKY SUMMIT 160XHV ESC
$349.99
Backordered
SKU: SUMMIT160
BALLISTIC power backed by the Power of Dualsky! The ideal ESC for 70cc models with Dualsky GA6000 motor.
Features:
- 32-bit ARM electric drive system
- Drive frequency up to 48MHZ
- Low internal resistance N-MosFETs
- Multi-layer PCB Board
- Metal CNC Housing
- Efficient driving core, abundant torque
- Supports effcient SINE wave working mode
- Supports regenerative braking
- Programmable rotation direction
- Updateable firmware
- X Series integrates high current UBEC w/ 200% Peak Capacity
- Supports multiple mainstream telemetry protocols through Tele-adapter

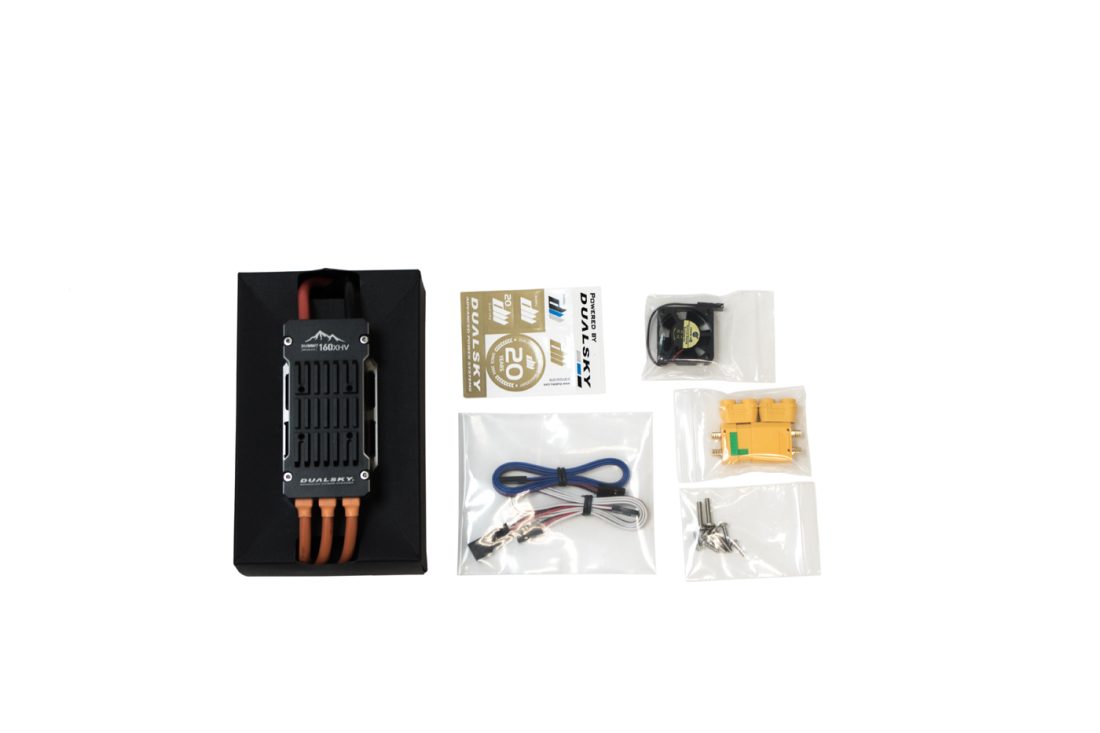

Includes:
- Summit 160XHV ESC
- Throttle Wire
- Telemetry Wire
- External 30mm Fan
- XT-90 AntiSpark connector (male/female set)
- Mounting Hardware
Dualsky Summit 160XHV ESC:
| Specifications: |
|
Dimmensions:
|
91.3mm (3.59in)
|
43.2mm (1.70in)
|
23.1mm (0.91in)
|
|
Weight:
|
210g
|
7.40oz
|
|
|
Number of Cells:
|
5S (18.5V) – 14S (51.8V)
|
|
|
|
Continous Current (A):
|
210
|
|
|
|
Resistance (Ri)(mOhm):
|
1.2mOhm (ta=25 degC)
|
|
|
|
Maximum RPM:
|
Up to 510K eRPM
|
|
|
|
Signal & Frequency:
|
PWM., up to 450Hz
|
|
|
|
Battery Eliminator Circut (BEC):
|
N/A
|
|
|
|
Motor Direction:
|
Normal – Reversed – Bidirectional
|
|
|
|
Programming:
|
Built-In USB Type-C to PC (Sofware: X-GOV APP & BLHELI32_rev.Dualsky)
|
|
|
|
FC Telemetry:
|
YES (Automatic protocol indentification, protocol S.Bus2, EXBus, SRXL2)
|
|
|
|
Energy Recovery:
|
Yes (Default = Enabled)
|
|
|
|
Brake On Stop:
|
YES & Adjustable (Default = OFF)
|
|
|
|
Timing System:
|
Progammable (Default = 22deg)
|
|
|
|
Low Voltage Protection:
|
Programmable (Default = 3.00V/Cell)
|
|
|
|
Acceleration:
|
Programmable (Default = Freestyle)
|
|
|
|
Overheat Protection:
|
YES – (Default = 140 deg C)
|
|
|
|
Water and Dust Proof:
|
IP3X
|
|
|
|
Cooling Fan:
|
YES – Built-in 25mm (external fans also mountable/available)
|
|
|
|
Full Aluminum Case:
|
YES
|
|
|
|
LED Indicator:
|
YES – Flight mode and USB mode
|
|
|
|
Input Wires:
|
10AWG 300mm, XT90 anti-spark plug
|
|
|
|
Output Wires:
|
10AWG, 100mm, DB6F
|
|
|
|
Signal Wires:
|
Throttle Wire: JR connector – 300mm
|
Telemetry Wire: JR Connector – 500mm
|
|
