CAP 232EX 70CC

$1,299.99$4,494.99

PRICE INCLUDES Residential Ground Shipping Charges (a value of $250)






Clear

Save BIG on select items when purchased with the Cap 232EX 70cc!

-
+
$329.99
GP Engine - GP76 with Mufflers

Only 1 left in stock

-
+
$743.07
DESERT AIRCRAFT DA-70

Only 3 left in stock

-
+
$810.94
-
+
$199.99
-
+
$159.99
-
+
$39.99
AURA PROFESSIONAL AFCS
-
+
$175.79
-
+
$74.99
-
+
$104.99
-
+
$104.99
-
+
$39.99
-
+
$59.99
-
+
$59.99
SKU: FPM23

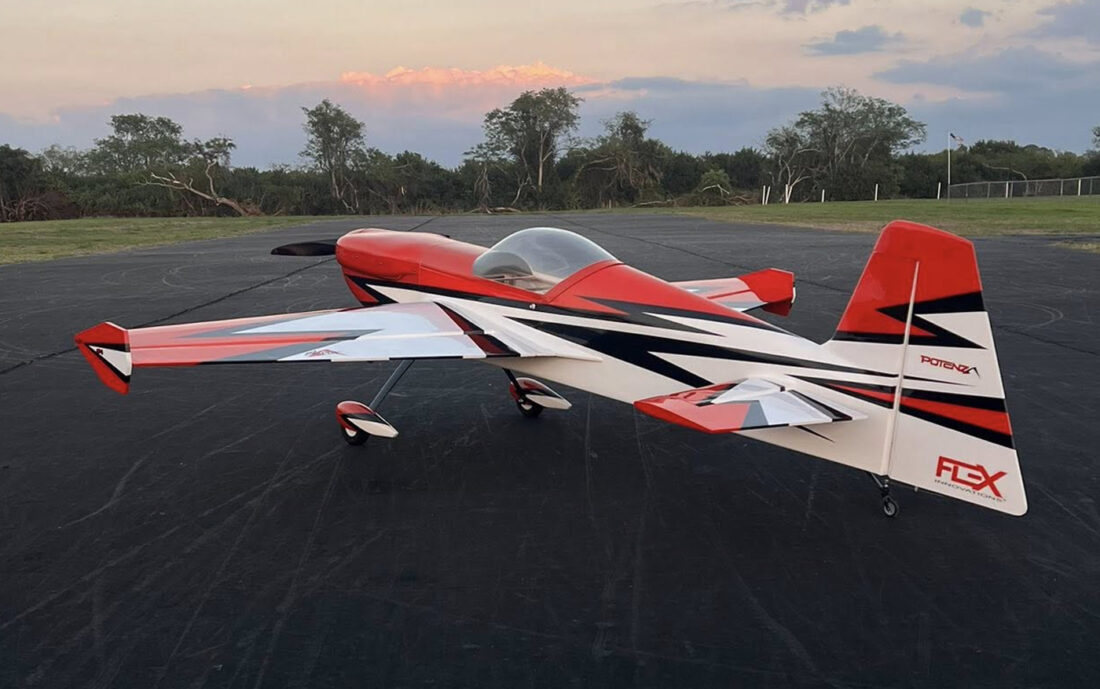

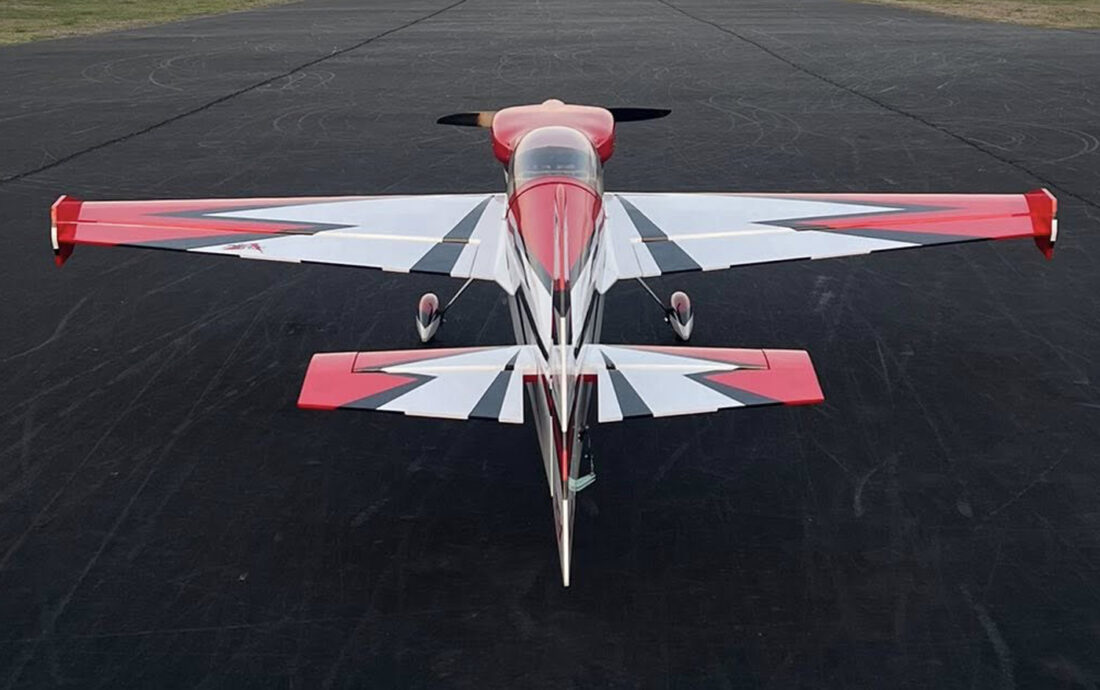

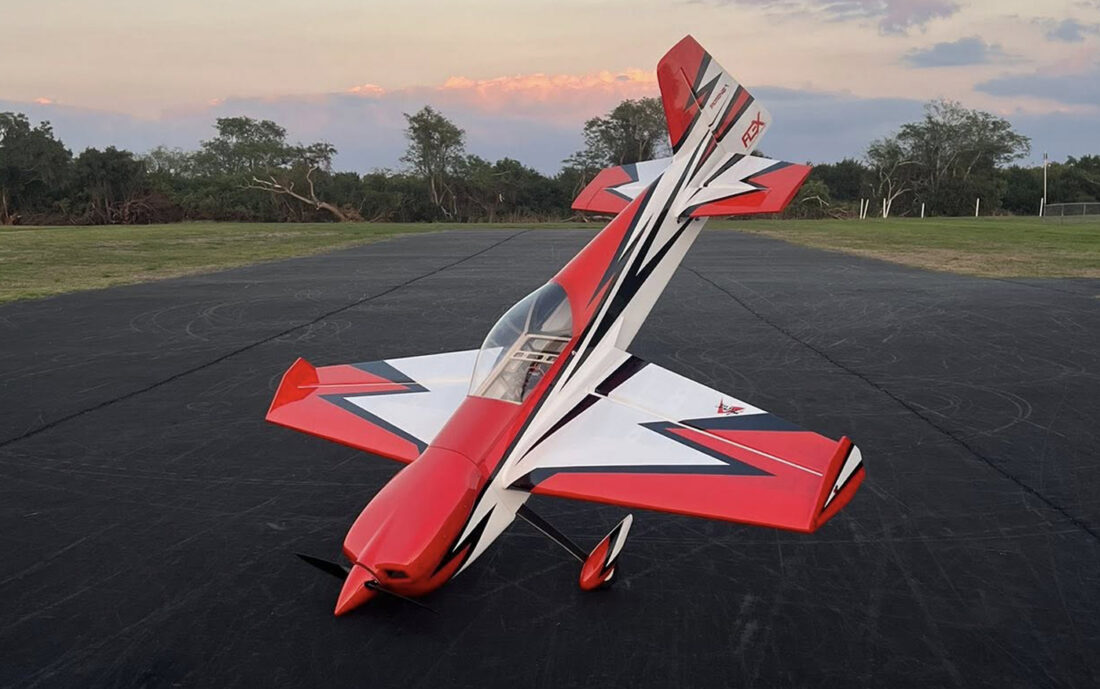

Cap 232EX 70cc ARF & ARFSV

The Mudry Cap 232EX rose to fame as an iconic full scale aerobatic airplane flown in aerobatic competitions in the late 1990’s. Designed by World Champion Quique Somenzini, the Cap 232EX 70cc redefines what a Cap 232 can be as a model airplane: an absolute aerobatic monster, with full-scale presence, all while addressing the undesirable behaviors previously associated with Cap 232’s. Beyond its impressive show-time presence, the Cap 232EX 70cc offers a wide flight envelope which excels at high energy XA maneuvers, 3D slow and stable characteristics, and precision flight.

Built for the highest G loads of XA aerobatics, the Cap 232EX 70cc uses the latest in modern building materials and techniques, including black fiber, fiberglass and laminated plywood, creating a lightweight, yet rigid airframe to handle your wildest aerobatic aspirations. The Cap 232EX features proprietary Flex Innovations Speed-Lock’s on the wings, stabilizers, and canopy, allowing you to assemble the airplane without the need for screws or tools! Additionally, all Cap 232EX 70cc’s come pre-hinged and gap sealed from the factory! The ARFSV version adds FACTORY-INSTALLED Flex DS49010BLHV servos, metal clamping servo arms, factory installed G-10 control horns, and premade linkages to get you in the air even faster! The Cap 232EX 70cc is available in two distinctive color schemes by Clint Sweet Designs, perfectly marrying the aircraft’s looks with its high-performance capabilities. The Cap 232EX 70cc represents the pinnacle of what you can expect from Flex Innovations: World Championship Performance with Authentic Scale Looks!


ARF FEATURES:

  • 3D and XA (eXtreme Aerobatic) performance with NO control coupling and scale appearance

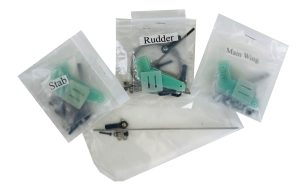

  • Speed-Lock’s on the wings, allowing you to assemble the airplane without the need for screws or tools
  • Speed-Lock’s on removable horizontal stabilizers with elevator servos mounted in each stab for easy storage and transportation

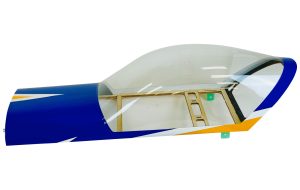

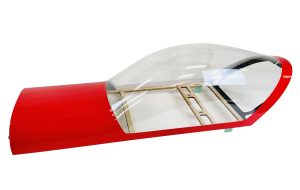

  • Speed-Lock’s on Canopy for quick and easy access to inside fuselage with no tools or screws

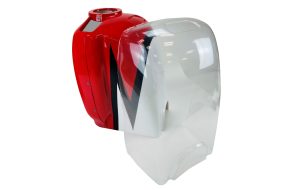

  • Fiberglass 2-piece cowling offers plenty of room for twin 70cc engines
  • Clear Lexan cowling template makes it a breeze to cut muffler holes
  • Carbon fiber landing gear
  • Laminated black fiber, fiberglass, plywood and balsa structure keeps the model lightweight, yet incredibly strong
  • Gigantic control surfaces for extreme 3D and XA performance

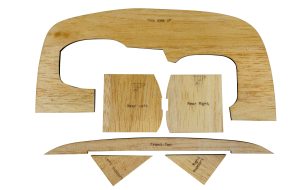

  • Pre-cut baffles for the DA-70 are included

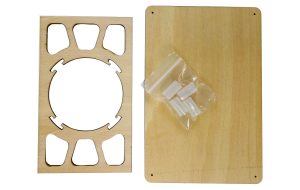

  • Canister ready and mount supplied
  • Removable rudder with a single wire through the hinges saves space for transportation
  • Accepts gas engines from 60-70cc, or equivalent electric motors, like the Desert Aircraft DA-70, or the Potenza 65cc Brushless Motor
  • Custom G10 Control Horns for Optimized Throw and Precision

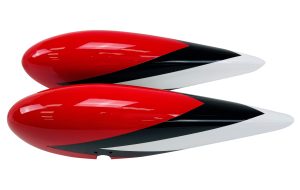

  • Painted Fiberglass Wheel Pants
  • Factory-applied trim scheme

ARFSV FEATURES:

  • All ARF Features, plus:
  • (5) Factory-installed Potenza DS49010BLHV servos for ailerons, elevators and rudder
  • (5) Potenza, 2-inch, Clamping, Aluminum Servo Arms included for ailerons and elevators
  • Factory-hinged control surfaces
  • Factory-sealed main wing and horizontal tail hinge gaps
  • Factory-installed aileron, elevator and rudder control horns
  • Factory-assembled aileron, elevator, and rudder linkages that are ready for final servo centering and hookup
  • Factory-installed servo extensions for ailerons and elevators

What Does an InstaFly Airplane Include?

All ARF/ARFSV FEATURES PLUS:

  • INCLUDED – Engine or Motor
  • INCLUDED – Personalized drilled carbon fiber spinner
  • INCLUDED – Personalized drilled Falcon Carbon Fiber Propeller
  • INCLUDED – Cowling drilled for your power setup
  • INCLUDED – Engine or Motor mounting hardware
  • INCLUDED – FTRC custom painted mufflers (gas setups only)
  • INSTALLED – Aura 8 Professional series fully programmed by FTRC
  • INSTALLED – Throttle & Control surface servos connected and sub-trimmed
  • INSTALLED – Fully wired airplane with FTRC custom Extension kit and wire loom

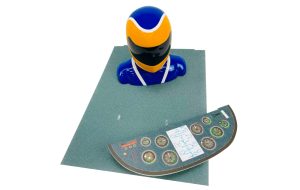

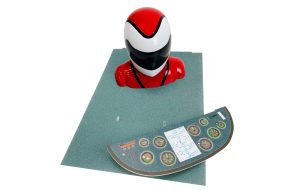

  • INSTALLED – Matching pilot and cockpit
  • INSTALLED – Fully Plumbed fuel system
  • INSTALLED – Custom baffles
  • INSTALLED – Receiver of your choice
  • INSTALLED – Dual 2S LiPo Receiver/Ignition packs
  • INSTALLED – Ignition IBEC
  • INSTALLED – FTRC Anodized Aluminum Hardware

Lane Walker Night Flight with the Cap 232EX 70cc!



Lane Walker shows 70cc Cap 232EX assembly with Flex Speed-Locks!



Jase Dussia flies the 70cc Cap 232EX @ Joe Nall 3D line



Flex Innovations 70cc Cap 232EX Tandem Premiere



Jase Dussia – Cap 232EX 70cc



Lane Walker – Cap 232EX 70cc

Specifications:
Wingspan: 88 in. 223 mm
Length: 91-3/4 in. 233mm
Gas Weight: 20 lb. 9.09 Kg
Engine/Motor Size: 60-70cc
Exhaust Recommendation (for DA-70): Slimline Stock Muffler Set
1 x MTW TDH 110 Canister w/KS 90mm Drop 2-to-1 Header
Servos Required: Minimum 4 for electric setups
Minimum 5 for gas setups
Min. 400 oz./in. (14kg/cm) for all flight surfaces

Cap 232EX 70cc Support:


Spare Parts
Spare Parts

Cap 232EX 70cc Manual
CAP 232EX 70cc Manual

Engine Template Addendum
Engine Template Addendum

CAP 232EX Wiki
CAP 232EX Wiki

Optional Aura Professional Support:


Aura Config Tool
Aura Config Tool

Aura Quick Start Overview
Aura Professional Quick-Start Overview

Aura 6-Axis Update and Quick Flip Guide
Aura 6-Axis Update and Quick Flip Guide

Aura Support Wiki
Aura Support Wiki

Aura Videos
Aura How To Videos

Red Trim Scheme Colors
ORACOVER® ULTRACOTE®
23 Ferrari Red HANU866 True Red
71 Black HANU874 Black
10 White HANU870 White
Camouflage Trim Scheme Colors
ORACOVER® ULTRACOTE®
21-033 Cadmium Yellow HANU872 Bright Yellow
52 Dark Blue HANU885 Midnight Blue
10 White HANU870 White

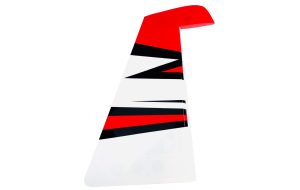

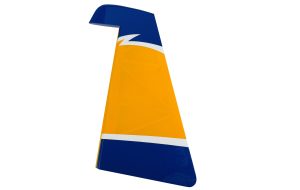

QQ Cap 232EX 70cc Replacement Parts


Color

Type Day/Night

Cap232 EX 70cc Optional Parts and Accessories
