DS49010BLHV BRUSHLESS SERVO
$159.99
In stock
SKU: FPZDS49010BLHV

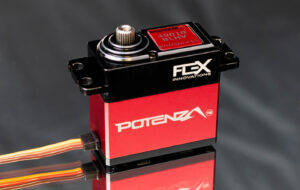

HIGH VOLTAGE, BRUSHLESS, DIGITAL SERVO
Designed specifically for use in the Mamba 120cc & Edge 540 120cc and featured in the Cap 232EX 70cc, RV-8 70CC G1/G2 and Ultimate 70cc G1/G2 ARFSV’s!
High-Performance for today’s demanding applications!
Features:
- High Voltage for native 2S LiPo use (Recommended)
- Powerful and efficient brushless motor runs cool, draws little current and has no brushes to wear out!
- Titanium gears for super strength and minimal weight
- Low Dead-band digital amplifier for strong and precise control
- CNC Aluminum Case for strength and heat dissipation
- Ball Bearing for the output shaft
- Standard JR style Connector
| Specifications: |
Torque:
(at 7.4V)
|
490 oz/in.
|
35.3 kg/cm.
|
Speed:
(at 7.4V)
|
0.10 sec/60º
|
|
|
Overall Length:
|
2.1 in.
|
54 mm
|
|
Overall Height:
|
1.8 in.
|
45 mm
|
|
Width:
|
0.8 in.
|
20 mm
|
|
Weight
|
2.95 oz.
|
84 g
|
|
Motor Type
|
Brushless
|
|
|
Operating Voltage
|
5.0-8.4V
|
|
