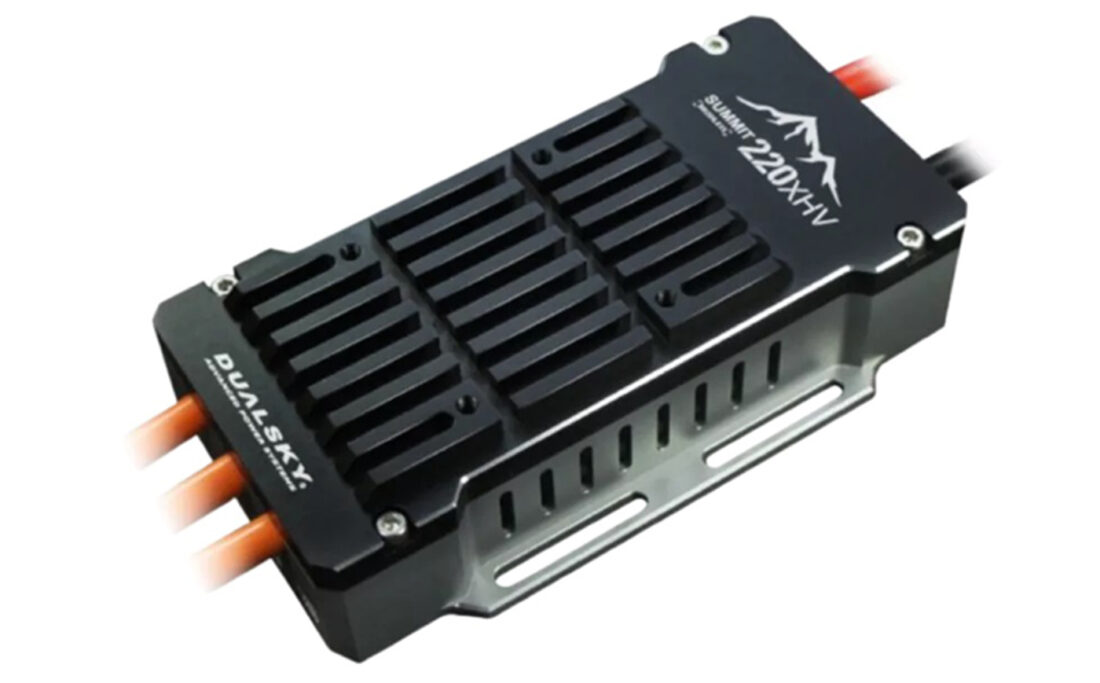

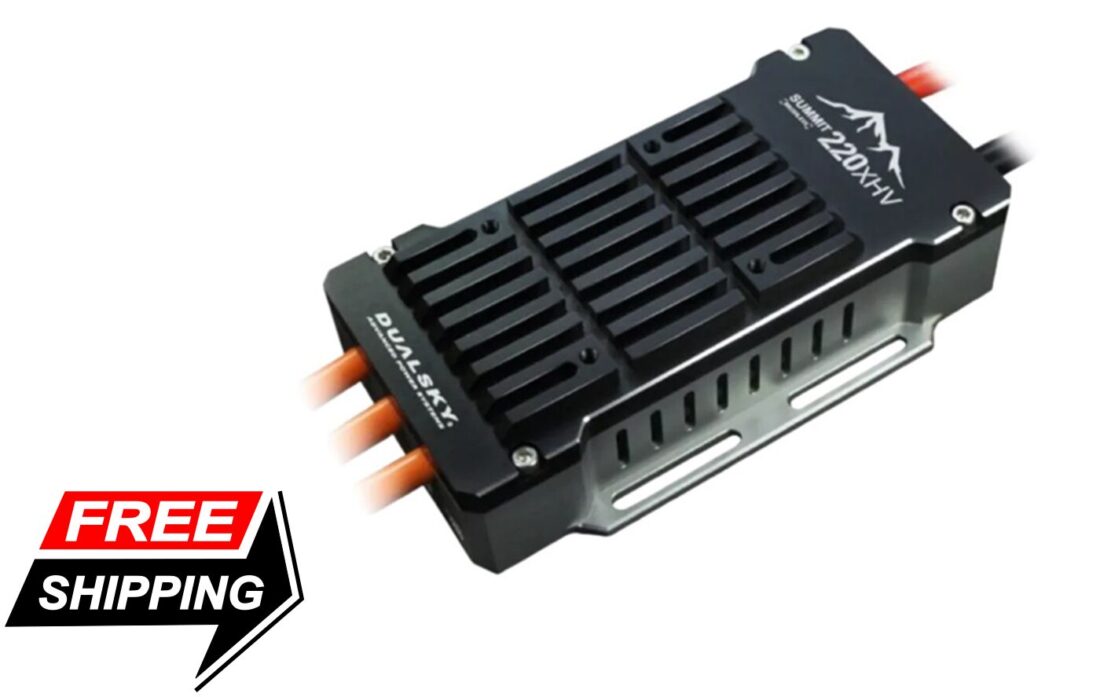

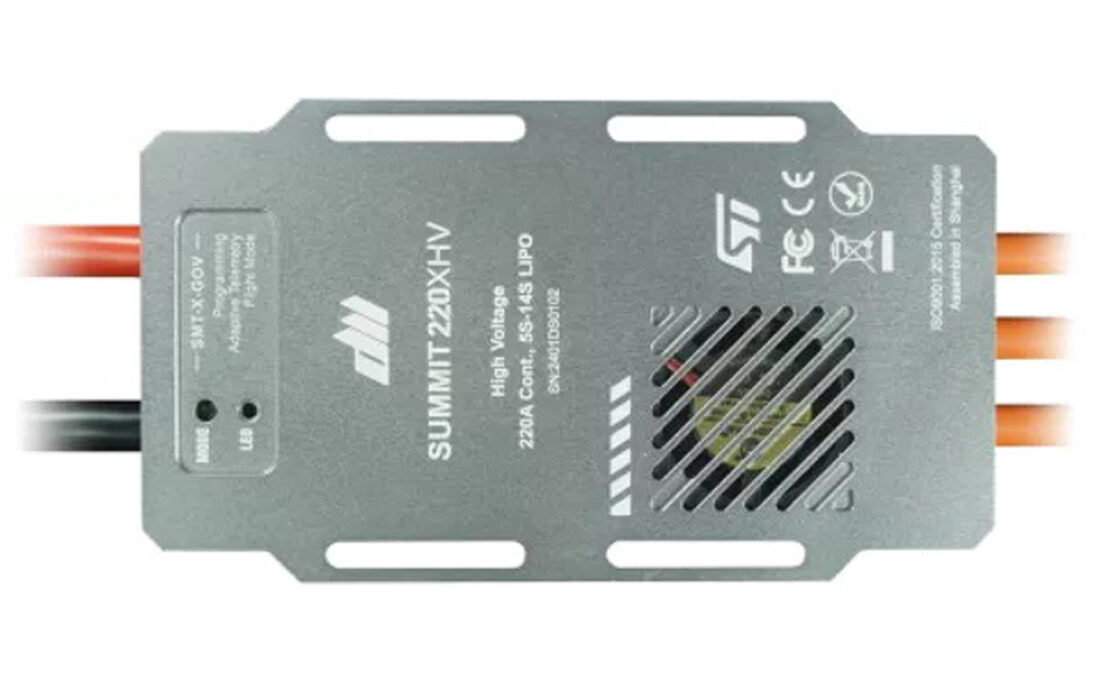

DUALSKY SUMMIT 220XHV ESC
$439.99
Backordered
SKU: SUMMIT220HV
BALLISTIC power backed by the Power of Dualsky! The ideal ESC for 120cc models with Dualsky GA8000 motor.
Features:
- Operating Voltage: 18.5V – 51.8V (5S – 14S)
- 32-bit ARM electric drive system
- Drive frequency up to 48MHZ
- Low internal resistance N-MosFETs
- Multi-layer PCB Board
- Metal CNC Housing
- Efficient driving core, abundant torque
- Supports effcient SINE wave working mode
- Supports regenerative braking
- Programmable rotation direction
- Updateable firmware
- X Series integrates high current UBEC w/ 200% Peak Capacity
- Supports multiple mainstream telemetry protocols through Tele-adapter
Includes:
- Summit 220XHV ESC
- Throttle Wire
- Telemetry Wire
- External 30mm Fan
- AS150 AntiSpark connector (male/female set)
- Mounting Hardware
Dualsky Summit 220XHV ESC:
| Specifications: |
| Dimmensions: |
109.3mm (4.30in) |
53.2mm (2.09in) |
25.6mm (1.00in) |
| Weight: |
300g |
10.58oz |
|
| Number of Cells: |
5S (18.5V) – 14S (51.8V) |
|
|
| Continous Current (A): |
220 |
|
|
| Resistance (Ri)(mOhm): |
0.8mOhm (ta=25 degC) |
|
|
| Maximum RPM: |
Up to 510K eRPM |
|
|
| Signal & Frequency: |
PWM., up to 450Hz |
|
|
| Battery Eliminator Circut (BEC): |
N/A |
|
|
| Motor Direction: |
Normal – Reversed – Bidirectional |
|
|
| Programming: |
Built-In USB Type-C to PC (Sofware: X-GOV APP & BLHELI32_rev.Dualsky) |
|
|
| FC Telemetry: |
YES (Automatic protocol indentification, protocol S.Bus2, EXBus, SRXL2) |
|
|
| Energy Recovery: |
Yes (Default = Enabled) |
|
|
| Brake On Stop: |
YES & Adjustable (Default = OFF) |
|
|
| Timing System: |
Progammable (Default = 22deg) |
|
|
| Low Voltage Protection: |
Programmable (Default = 3.00V/Cell) |
|
|
| Acceleration: |
Programmable (Default = Freestyle) |
|
|
| Overheat Protection: |
YES – (Default = 140 deg C) |
|
|
| Water and Dust Proof: |
IP3X |
|
|
| Cooling Fan: |
YES – Built-in 25mm (external fans also mountable/available) |
|
|
| Full Aluminum Case: |
YES |
|
|
| LED Indicator: |
YES – Flight mode and USB mode |
|
|
| Input Wires: |
8AWG 300mm, AS150 anti-spark plug |
|
|
| Output Wires: |
10AWG, 100mm, DB6F |
|
|
| Signal Wires: |
Throttle Wire: JR connector – 800mm |
Telemetry Wire: JR Connector – 800mm |
|
