EDGE 540 120CC G1 (DISCONTINUED)

PRICE INCLUDES Residential Ground Shipping Charges (a value of $350)



EDGE 120cc G1 is now discontinued.

  • Please click here for Edge 120cc G2.
  • This product is currently out of stock and unavailable.

    Save BIG on select items when purchased with the Edge 540 120cc!

    -
    +
    $1,050.00
    -
    +
    $1,249.99
    -
    +
    $379.99
    -
    +
    $159.99
    -
    +
    $90.90
    -
    +
    $10.71
    AURA PROFESSIONAL AFCS
    -
    +
    $199.99$249.99
    SKU: FPM13

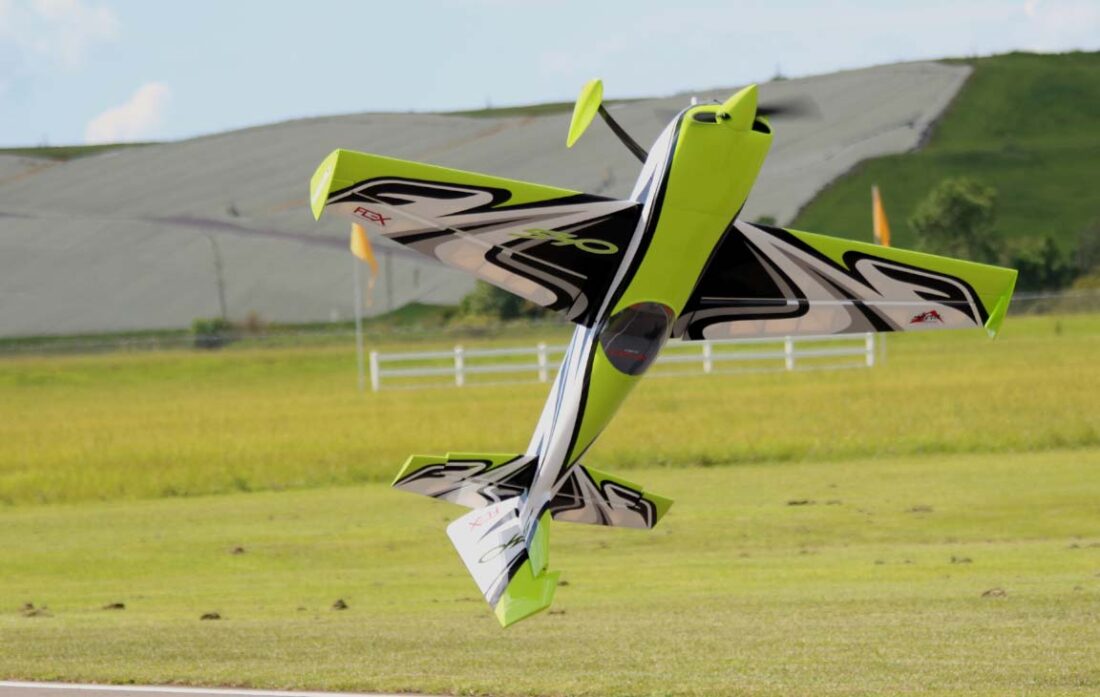

    Designed by the Flex Innovations Design Team, the Edge 540 120cc not only captures the sleek aesthetics of its full-size counterpart but also boasts exceptional performance capabilities. Its design is a nod to the full scale Zivko Edge 540, ensuring an authentic and captivating appearance in the skies. Beyond its striking visual appeal, the Edge 540 120cc is a true performer, excelling across a broad range of flying styles. Whether you’re into low and slow 3D maneuvers, high-energy XA flights, or precision flying, the Edge 540 delivers an impressive flight envelope to meet your every expectation.

    Constructed with a modern blend of laminated plywood and carbon fiber, the Edge 540 120cc achieves a perfect balance of lightweight agility and structural strength. The removable Side Force Generators (SFGs) contribute to high-alpha stability, precision tracking, and enhanced yaw authority. The seamless appearance is maintained by cleverly hidden cowl screws, while two distinctive Clint Sweet Designs color schemes ensure that this aerobatic marvel stands out in any crowd. Add the Edge 540 120cc to your hangar, and experience a level of performance and design that sets it apart as a must-have for aviation enthusiasts!


    FEATURES:

    • 3D and XA (eXtreme Aerobatic) performance with minimized control coupling while maintaining scale appearance
    • Massive control surfaces for extreme 3D and XA performance
    • Laminated carbon fiber, fiberglass, plywood and balsa structure keeps the model lightweight, yet incredibly strong.
    • Aileron counter balances aid in roll authority and allow the aileron servos to be mounted closer to the fuselage to help minimize weight at the wingtip for cleaner rolls and snaps
    • Quick to assemble! Aileron and elevator hinging as well as gap sealing is completed by the factory
    • Side Force Generators (SFGs) are included and install easily to enhance yaw authority, tracking and high-alpha stability
    • Flush mounted cowl with hidden cowl screws for a clean appearance
    • Low-pressure lip molded into the bottom of the cowling aids in engine cooling
    • Carbon fiber landing gear helps keep the Edge lightweight
    • Lightweight “soda bottle” style fuel tank included
    • Carbon fiber wing and stab tubes
    • Accepts many popular 100-125cc gas engines like the Desert Aircraft DA 120 and GP 123
    • Custom G10 Control Horns for Optimized Throw and Precision
    • Professionly painted fiberglass wheel pants, caonopy and cowling
    • Distinctive, factory-applied trim scheme

    OPTIONAL EDGE 540 120CC ACCESSORIES

    Jase Dussia tail-dunking his red Edge 120CC @ Nall 3D pond!!

    Jase Dussia Mexico DeathMatch 2023 Winning Freestyle

    GL7 Demo – Jase Dussia

    Flex Edge 540 120cc – Lane Walker

    Joe Nall Friday Noon Demo – Jase Dussia

    Joe Nall 3D Line – Jase Dussia

    Joe Nall Wednesday Noon Demo – Jase Dussia

    Specifications:
    Wingspan: 104″ 2642mm
    Length (with spinner) 102.2″ 2595mm
    Weight: 28lb 12.70kg
    Engine: Gasoline (Petrol) 100-125cc
    Exhaust: Stock Mufflers or
    KS 3086 Canisters (2)
    Header Drop – 90mm Flexible
    (If Applicable)
    Channels: 5-8*
    Servos: 8+
    Green Trim Scheme Colors
    ORACOVER® ULTRACOTE®
    42 Royal Green Unavailable, Order Flex Part: FPM1316
    10 White HANU870 White
    71 Black HANU874 Black
    91 Silver HANU881 Silver
    Red Trim Scheme Colors
    ORACOVER® ULTRACOTE®
    23 Ferrari Red HANU866 True Red
    52 Dark Blue HANU885 Midnight Blue
    91 Silver HANU881 Silver
    10 White HANU870 White
